Dip-moulded partsThe ideal solution for complicated geometries
Do you need to safely cover machine components that are angular or difficult to reach? Then we can help you with our special problem-solver: the dip-moulding process.
The dip-moulding process enables us to implement very complicated geometries – with lengths ranging from 10 to 800 mm. However, the dip-moulding process is also a good solution for “ordinary” bellows in small and medium batch sizes (50–1,500 pieces) because it is particularly cost-effective – provided that suitable material is used. By introducing plasticisers and additives, innoFlex® can adjust the flexibility of the moulded parts to ideally suit your requirements.
The dip-moulding process
The technology in a nutshell: In the dip-moulding process, preheated metal moulds are dipped into liquid PVC plastisol. The thermosensitive plastisol gels around the dipped mould. The longer the residence time in the plastisol, the greater the subsequent wall thickness. The component is then gelled in an oven and demoulded and the dip-moulded component is finished. The dipping process is labour-intensive and therefore only economical for small to medium quantities, or for geometries that are otherwise difficult to manufacture. In any case, you will benefit from the low mould costs.
With its dip-moulded parts, innoFlex® repeatedly succeeds in solving persistent technical challenges. Just speak to one of our applications technicians if you need covers or sheaths in complicated shapes.
The protective functions
innoFlex® dip-moulded bellows protect machine components from …
- Alkalis
- Low-percentage acids
- Petrol and benzene
- Seawater
- Emulsions
- Oils and greases (special formulation)
… and people from …
- contact with moving machine parts
Special feature
innoFlex® dip-moulded parts have excellent electrical insulation properties. To protect people from contact with electrical current, machine and operating components can be covered or sheathed with dip-moulded parts.
Reasons to choose dip-moulded parts from innoFlex®:
- Extremely cost-effective in small quantities
- Fast delivery
- Even complicated geometries are feasible in one piece – like no other process!
- Good resistance values
- Customised functional equipment
- Two or more colour zones possible in one moulded part
Applications:
- Medical technology and electrical engineering
- Agricultural and commercial vehicles
- Construction machinery
- General mechanical engineering
- Plant engineering and construction
Product details
Material
To provide you with the best possible solution for your specific application, innoFlex® offers you a particularly broad range of materials for dip-moulded parts. After thoroughly analysing your requirements, we will work together with you to find the optimum material – and therefore the best dip-moulded parts for your application.
|
Dip-moulded parts – material overview |
TP 50 M |
TP 56 K |
TP 56 KS |
TP 59 |
TP 59 FL |
TP 60 F |
TP 70 |
TP 80 |
|
|---|---|---|---|---|---|---|---|---|---|
| Abbreviations | TP50m | TP56k | TP56ks | TP59 | TP59fl | TP60f | TP70 | TP80 | |
| Material nummer | 5000 | 5600 | 5610 | 5900 | 5910 | 6000 | 7000 | 8000 | |
| Hardness scale Shore A | 50 | 52 | 50 | 59 | 59 | 60 | 70 | 80 | |
| Mechanical properties at room temperature | |||||||||
| Thermal behaviour |
Cold flexible up to °C | -35 | -40 | -42 | -22 | -20 | -12 | -12 | -22 |
| Max. Continuous operation temperature in °C | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | |
| Resistance to | White spirit (at 20 °C) | ||||||||
| Petroleum (at 100 °C) | |||||||||
| Acids (at 25 °C) | |||||||||
| Alkalis (at 20 °C) | |||||||||
| Water (at 20 °C) | |||||||||
| Weathering and ozone | |||||||||
| Air impermeability | |||||||||
| FL = flame retardant (in accordance with UL 94 – V-0) | Assessment: | Very good | Good | Satisfactory | Adequate | Insufficient | |||
Please note:
If you are unable to find the right material for your specific application, just speak to one of our applications technicians.
We will be happy to provide you with expert individual assistance.

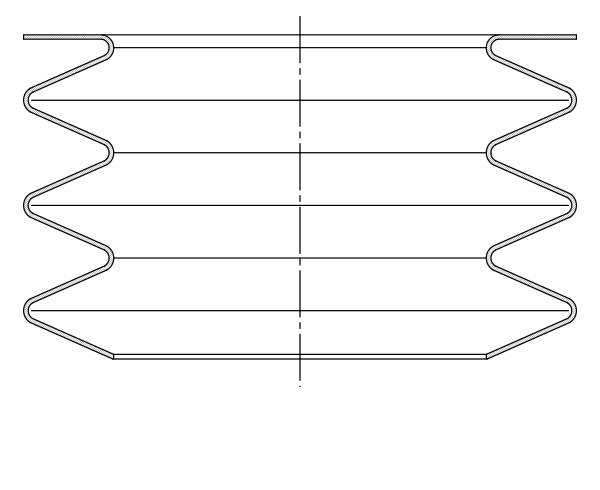

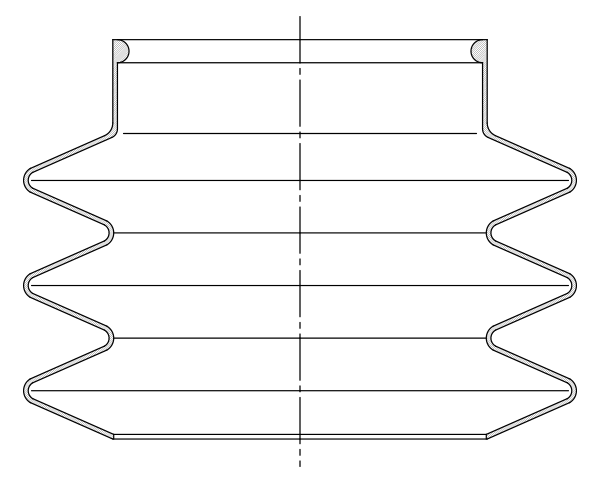

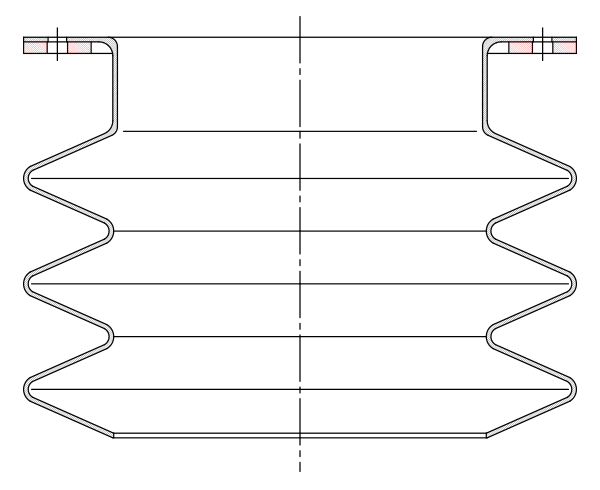

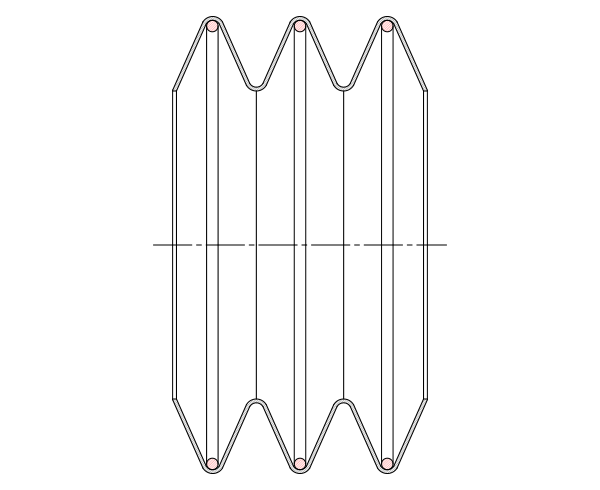

Connections and accessories
In order to integrate the new dip-moulded parts in your application in a functionally reliable manner, innoFlex® offers you a wide range of connections and accessories. Just speak to our technicians about your specific application. Together we will find the ideal connections and accessories for your dip-moulded parts.
Special designs
